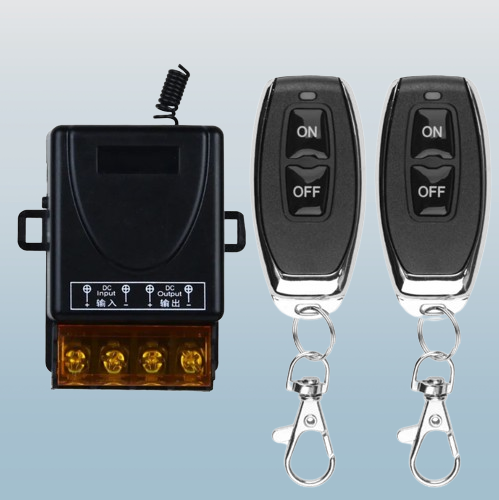

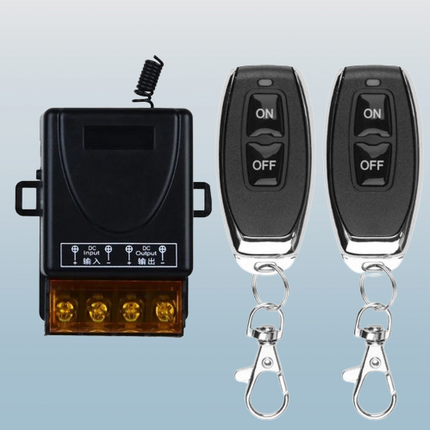

Signal Receiver Wireless Remote Control Switch Relay

Signal Receiver Wireless Remote Control Switch Relay

Product form

This is a versatile device that enables wireless control of various electrical appliances. With its efficient signal reception capabilities. this... Read more

$16.95 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jun 05, 2026 23:59:00 -0700
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

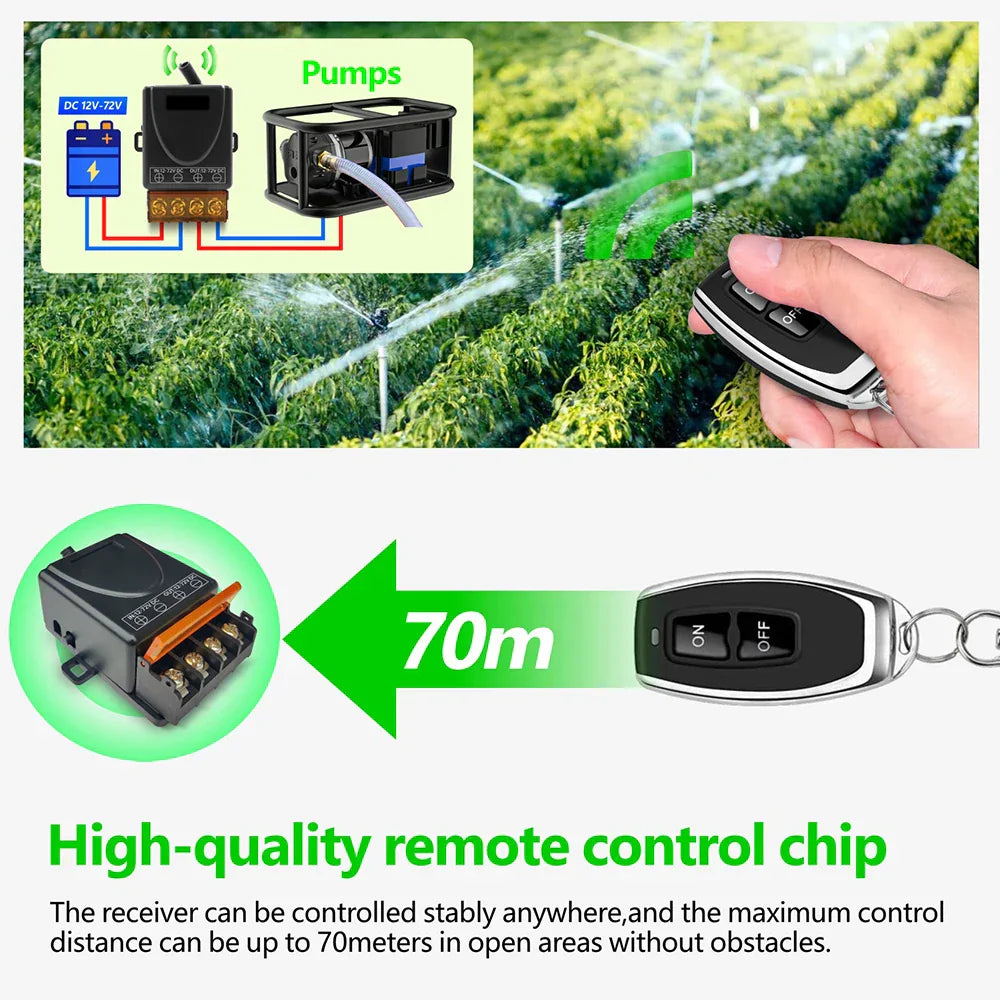

    This is a versatile device that enables wireless control of various electrical appliances. With its efficient signal reception capabilities. this relay allows users to remotely operate switches from a distance. This device is designed to provide convenience and flexibility in managing electronic devices through a wireless remote control system.


    About Learning and clearing Method:

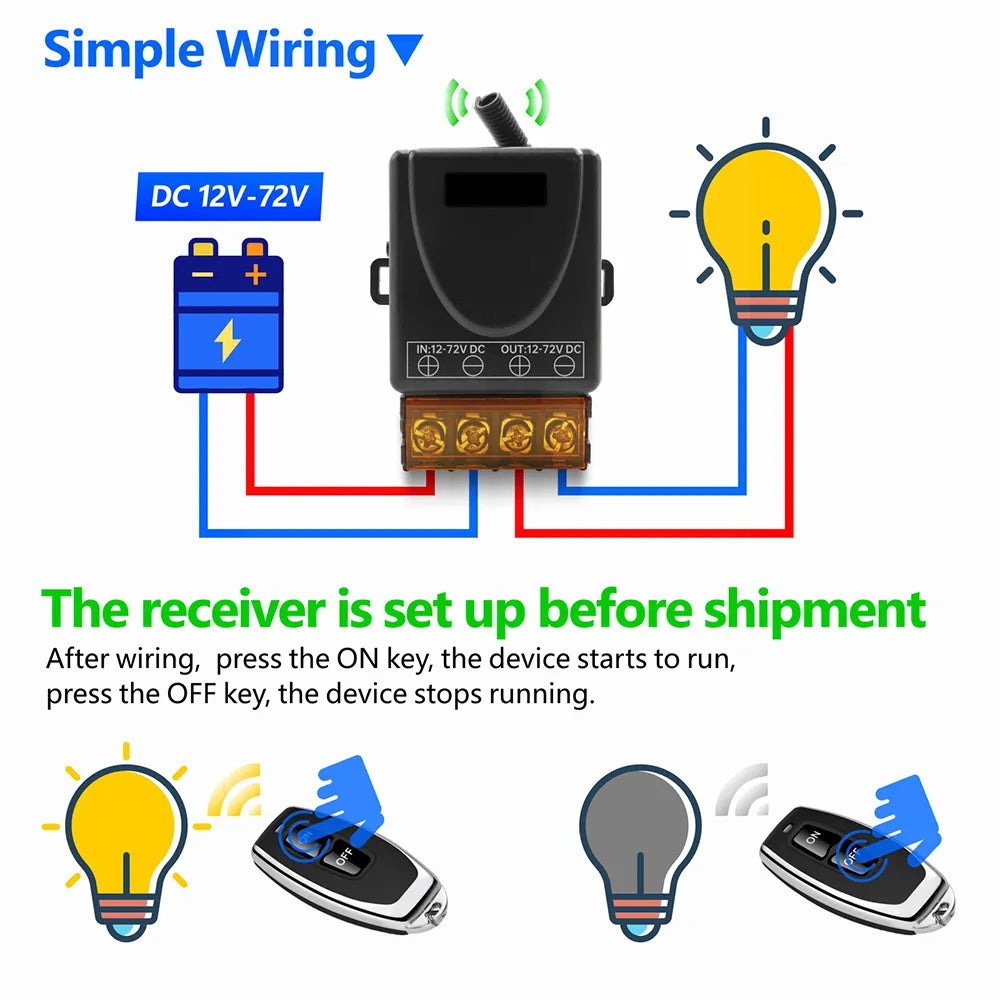

    Input 12V for the Receiver .
    Momentary: press the Learning Button 1 time. the Led indicator flash 1 time. Then press transmitter. the Led indicator flash for 3 times. learning successfully.
    Toggle: press the Learning Button 2 time. the Led indicator flash 2 time. Then press transmitter. the Led indicator flash for 3 times. learning successfully.
    Latched: press the Learning Button 3 time. the Led indicator flash 3 time. Then press transmitter. the Led indicator flash for 3 times. learning successfully.
    Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time. Then press transmitter. the Led indicator flash for 3 times. learning successfully.
    Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 time. Then press transmitter. the Led indicator flash for 3 times. learning successfully.
    Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time. Then press transmitter. the Led indicator flash for 3 times. learning successfully.

    Clearning: Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF. it mean Clearing Code

    SPECIFICATIONS

    About Receiver:

    1. Working voltage: DC12V-72V
    2. Quiescent condition: Less than 8mA
    3. Working temperature: -40 Degree +80 Degree
    4. Receiver sensitivity: more than -105dBm
    5. Working frequency: 433mhz
    6. Output voltage: Input=output
    8. Max load current: 30A

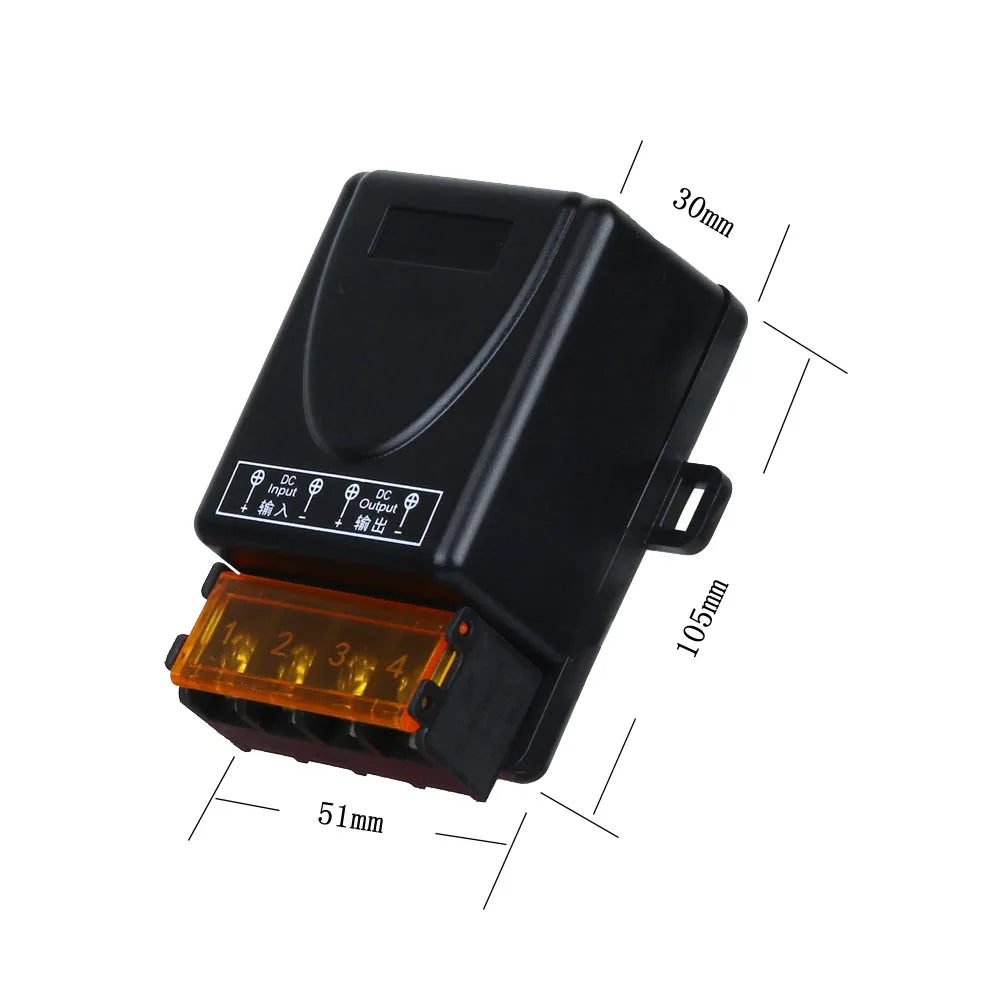

    9. Size: 105 x51 x 30mm
    About Working way:

    Momentary: Relay: Press and hold -> On; Release -> Off.
    Toggle: Relay: Press -> On; Press same button again -> Off·
    Latched: Relay: Press -> On; Press other button -> Off.
    Delay time :
    Press remote control button. the corresponding relay actuates and keeps working until the time out.

    Use: Universal

    Use: Lighting

    Use: Electric Door

    Use: SWITCH

    Wireless Communication: RF

    Support APP: No

    Certification: CE

    Certification: FCC

    Certification: pse

    Frequency: 433 MHz

    What's in the Box:

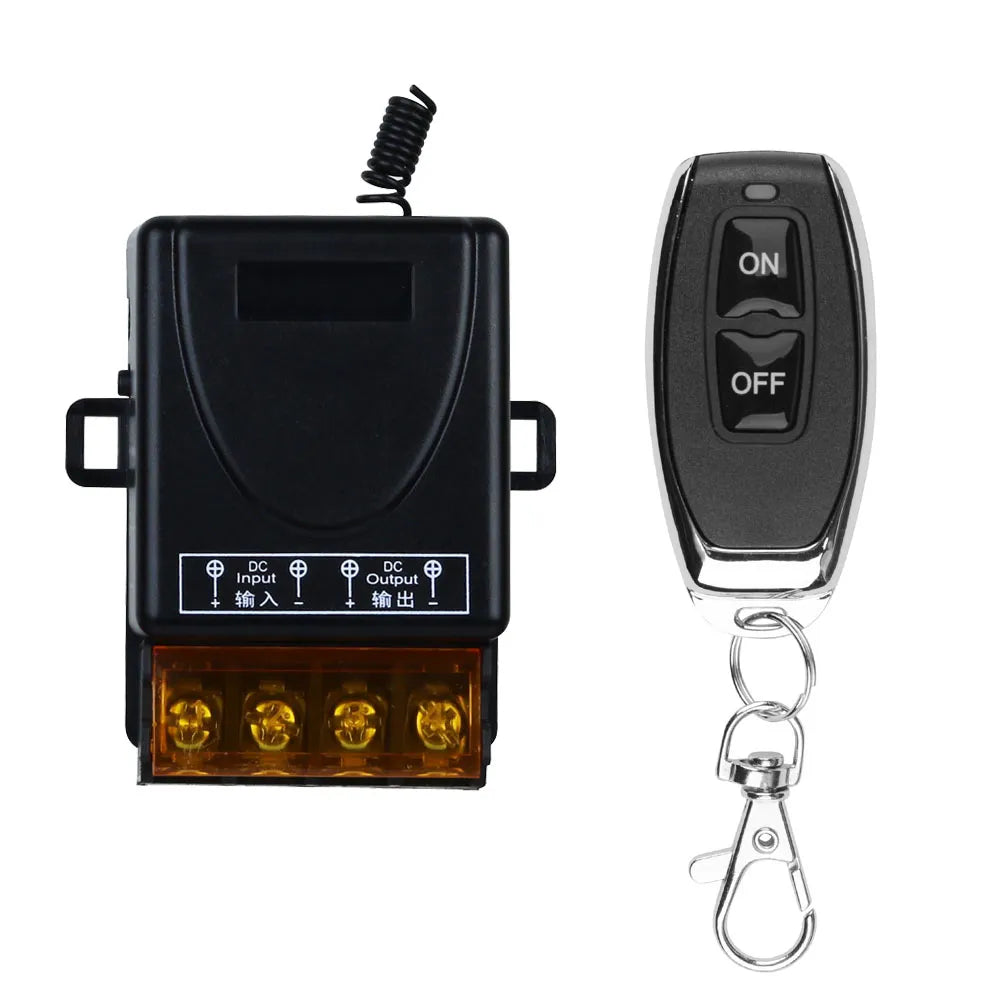

    1 x Signal Receiver Wireless Remote Control Switch Relay


    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight
